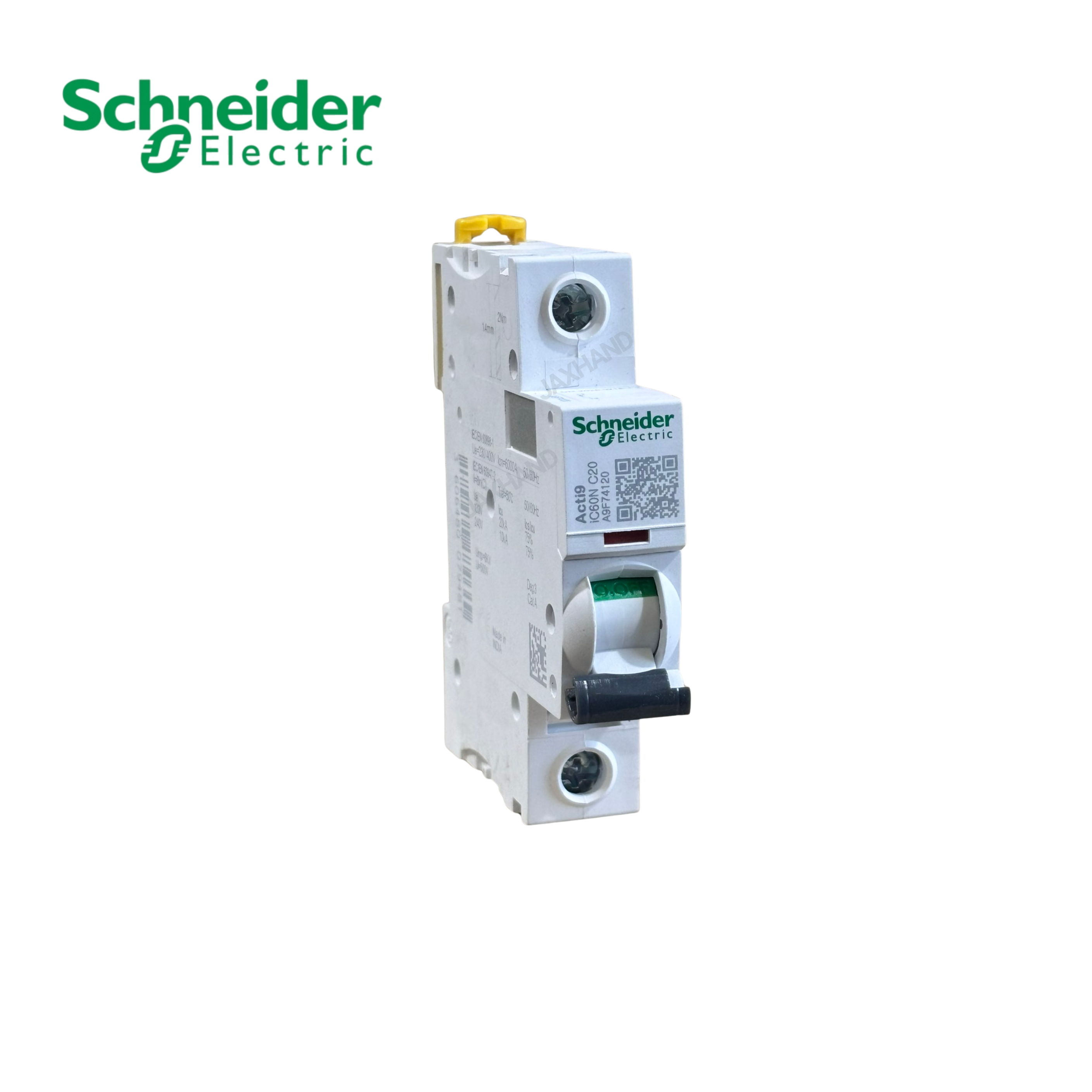

Schneider AC/DC Miniature Circuit Breaker 1 Pole 2A - 63A

Schneider Electric Acti9 iC60N

 1-pole miniature circuit breaker is a versatile device rated for both AC and DC network types. While primarily used for AC distribution, it can operate in DC networks with specific voltage ratings and a de-rating of its breaking capacity.

For a single-pole configuration, the iC60N typical DC performance includes:

Operating Voltage (Ue) : Rated for 12 to 72 V DC

Breaking Capacity (Icu):

10kA at 220V-240VAC
20kA at 440VAC~

15kA at 12 to 60 V DC

10kA at 72 V DC

Insulation Voltage (Ui): : 500 V AC (standard for the series)

• Polarity: Standard
  iC60N
   models are typically non-polarized, making them easier to wire in DC circuits compared to dedicated DC-only breakers like the C60H-DC, which are strictly DC and cannot be used for AC.
• ripping Curves: Most iC60N DC-rated applications use C curves.
• Voltage Stacking: For higher DC voltages (e.g., above 72V), multiple poles must be connected in series to share the arc-extinguishing load
